PRE-INSTALLED JUNCTION BOX

GEO

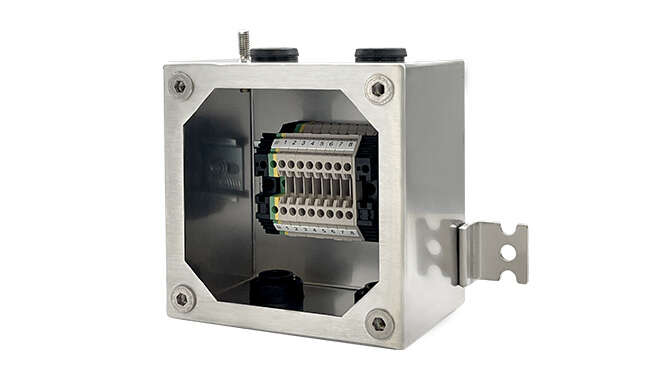

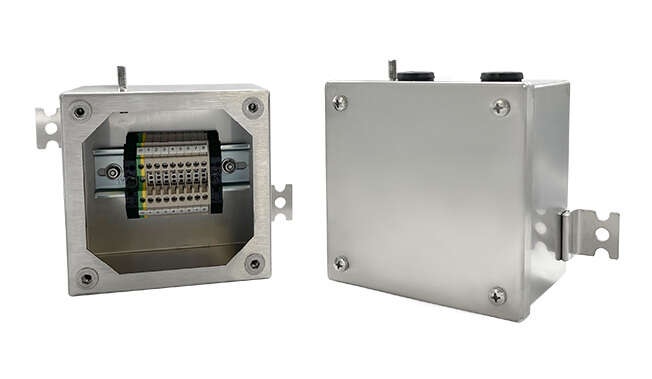

The junction boxes terminals are pre-assembled with terminals and cable glands; standardized, certified and ready for installation.

Its characteristic design makes it, a sturdy, anti-corrosion, IP66 waterproof with preassembled terminals and four stopping plug M20. We deliver the terminal box with terminals installed on numbered DIN rail, with their glands mounted (material to be chosen) and final certified, ready for placement and in stock for delivery so you do not have to worry about anything.

Download Product

This product has the following certificates

  • Logo 10 year anti-corrosion · Delvalle Box
  • Logo Corrosion resistant · Delvalle Box

Description

Pre-assembled boxes made of stainless steel AISI 304L, robust and anticorrosive, represent our most solvent bet due to its functionality, design and sealing to incorporate all types of terminals.
Incorporated in the inside 8, 15 or 20 screw terminals (2,5 mm2) mounted on DIN rail.
Certified CE.
Installed terminals from Weidmüller brand.
Access to the inside is facilitated thanks to
the fastening of the cover with easy-to-install screws.
Subject to the stringent tests prescribed in IEC 60079-7 in the premises of a Notified Body.
External grounding of metric M6.
Thickness 1.2mm (depending on boxes).

Discover the advantages

• In stock, delivery time next day.
• Save time and cost savings.
• The access to the interior is facilitated thanks to the fixing of the cover with screws of easy placement.
• Marine water resistant (AISI 316L).
• Strength, durability and long life.
• The manufacture of the stainless steel monobloc allows sealing and ensures maximum resistance.

Regulations

• IP55 or IP66 (W) Norm EN 62208 / EN,60529.
• DIN EN ISO 14159 Machine safety – hygiene requirements pertaining to the design of machinery.
• Machinery Directive 2006/42/EC. Food machinery and cosmetic or pharmaceutic production.
• EHEDG Guideline Hygienic Design doc.13 machinery for open processes.
• DIN EN 1672-2-2005 for food industry machinery.
• Maximum IK10 resistance Norm IEC 62208 and EN 50102.
• Manufactured following EU low voltage ruling 2014/35/UE.
• RoHS Directive 2011/65/UE compliant.
• UL approval Nema 4x, 12, 3r, 1. No File E342220.
• Maximum voltage 1000 V.
• Temperature resistant: -40°C +100°C (short time +160°C).
• Option silicone gasket: from -60°C to +180°C (short time up to +350°C)

PRE-INSTALLED JUNCTION BOX · Delvalle Box

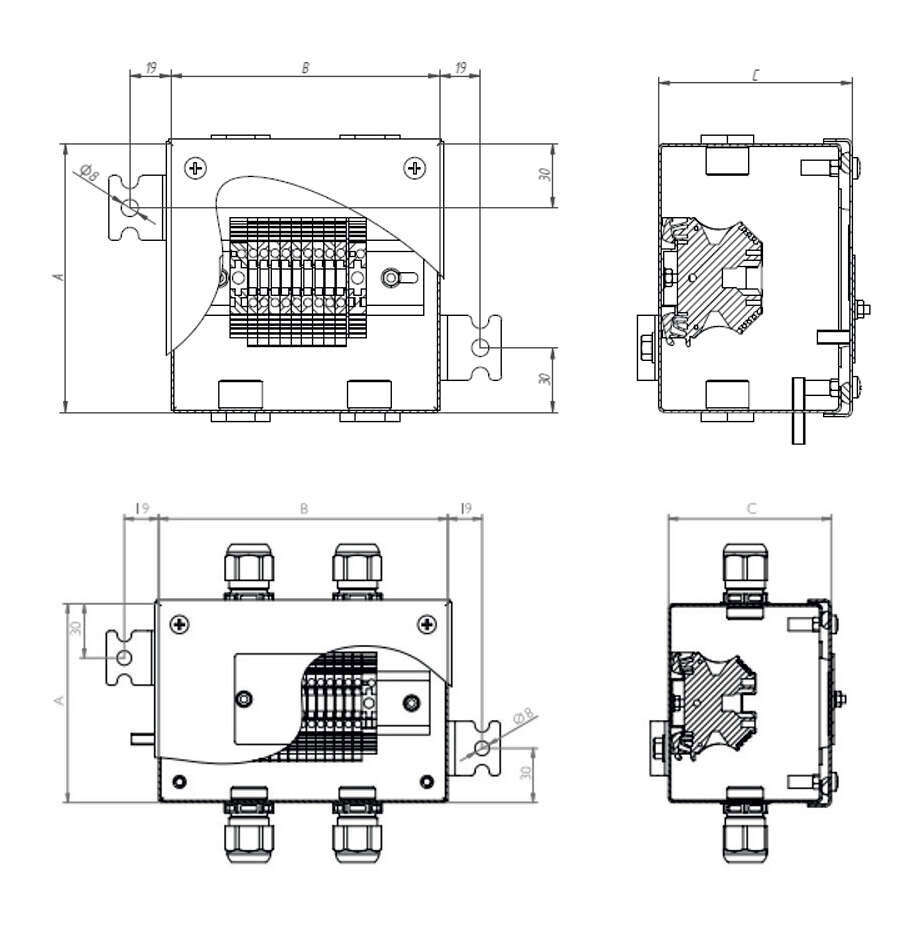

Sketches

PRE-INSTALLED JUNCTION BOX · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
MVCB12129000212512590MVCB121290002
