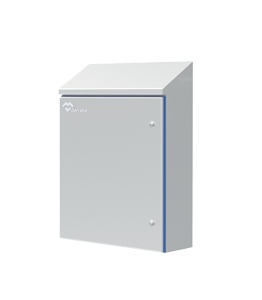

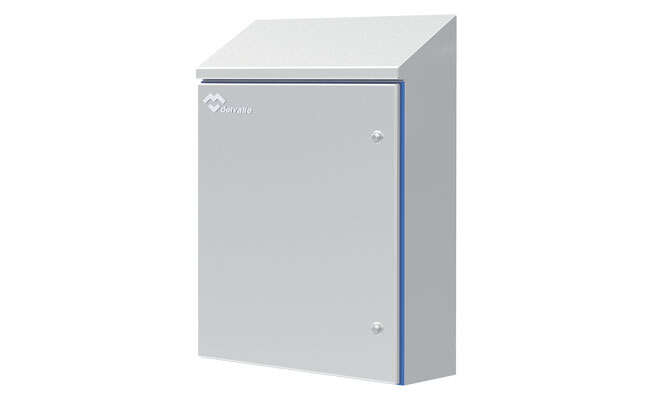

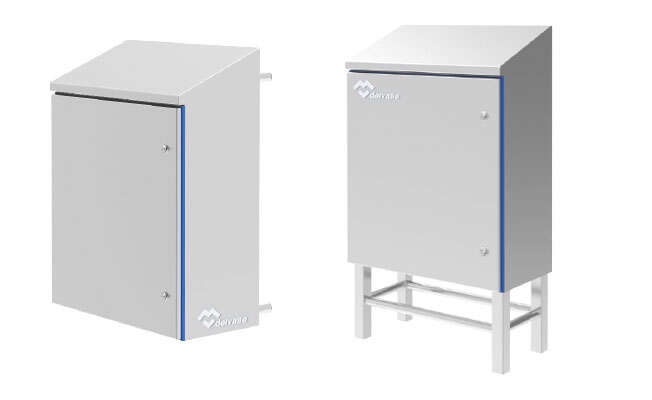

Hygienic Design Enclosure Luxor IP6K9K

HYGIENIC SERIES

Hygienic Design wall Enclosure Luxor series IP6K9K wall made of stainless steel AISI 304L or AISI 316L. Specially designed for the food industry.
No openings, hinges, where bacteria could lie but robust and easy lock opening with a big space inside to allow easy working.

Moreover the inclination of the roof prevents objects being placed on the surface and our vertical electro polished finish helps repel liquids and prevent virus and bacteria building up on the surface.

This product has the following certificates

Description

Hygienic Design Luxor electrical enclosure IP6K9K wall made of stainless steel AISI 304L or AISI 316L. Specially designed for the food industry.
No openings, hinges, where bacteria could lie but robust and easy lock opening with a big space inside to allow easy working. Moreover the inclination of the roof prevents objects being placed on the surface and our vertical electro polished finish helps repel liquids and prevent virus and bacteria building up on the surface.

Download all documents and certificates

Do you need extra info?
In DELVALLE, WE make IT EASY for you

Discover the advantages

Supplied wrapped in protective film which prevents scratches and abrasions during handling.
Resistant seal to temperatures from -60°C up to +200°C.
The monobloc manufacture gives total sealing and maximum resistance.
No openings where bacteria could lie.
90º door opening. Standard opening to the left. Specify if you need opening to the right.
With electro-polished finish that helps dispel liquids and waterproof seal that prevents dirt and bacteria deposits.
Delvalle supplies any measurements required including custom built holes and cut outs both for the door and enclosure.
Temperature resistant: -40°C +100°C (short time +160°C).
Option silicone gasket: from -60°C to +180°C (short time up to +350°C).
Captives screws.

Regulations

IP66 Norm IEC 60529.
ISO 20653 - IP6K9K.
Maximum IK10 resistance Norm IEC 62262.
EC 1935/2004 rule compliant for materials intended to come into contact with food.
DIN EN ISO 14159 Machine safety – Hygiene requirements pertaining to the design of machinery.
Machinery Directive 2006/42/EC (previously 89/37/EC) Food machinery and cosmetic or pharmaceutic production.
EHEDG Guideline Hygienic Design doc.13 machinery for open processes.
DIN EN 1672-2:2006 for food industry machinery.
Follows EU low voltage ruling 2014/35/UE.
RoHS Directive 2002/95/EC compliant.
UL approval Nema 4x, 12, 3r, 1. Nº File E342220.
Maximum voltage 1000 V.
Temperature resistant: -40°C +100°C (short time +160°C).
Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Applications

Especially designed for the food industry and sterile rooms, wineries, dairies and take away food outlets or any other place where cleanliness is essential as well as total absence of dust, dirt and bacteria.
