STORM SERIES

Outdoor telecom 19" rack cabinet Storm Series IP66 enclosure, designed to be placed in outdoor areas, protecting the rack electronic equipment needed for lighting, signage, video surveillance, etc.

The aluminum in combination with the double walls, is the ideal solution for optimum heat management, ensuring performance of electronic equipments.

Durable stainless steel or aluminum enclosure, especially suitable for wireline applications with active equipment, e.g. FTTC.
Robust outdoor solution for radio and transmission equipment.

Outdoor Telecom 19 Storm · Delvalle BoxDelvalle Box

This product has the following certificates

  • Logo EMC · Delvalle Box
  • Logo IK10 · Delvalle Box
  • Logo IP66 · Delvalle Box
  • Logo ROHS · Delvalle Box
  • Logo 10 year anti-corrosion · Delvalle Box
  • Logo 5 year mechanical parts · Delvalle Box
  • Logo Chemical resistant · Delvalle Box
  • Logo Corrosion resistant · Delvalle Box
  • Logo Scrach resistant · Delvalle Box
  • Logo Waterproof · Delvalle Box

Description

Outdoor Telecom Rack Storm Series enclosure, designed to be placed in urban or interurban areas, protecting the electronic equipment needed for lighting, signage and video surveillance. Its application range is extended with external telecommunication installations, telephones, computers, weather stations and any other application that needs extra protection.

The Storm Series is characterized by its high resistance to corrosion and wear, ideal for placement in cities and highways, spacious interior; thanks to its construction, achieves greater width and height than the rest.

Provided with approved water repellent injected seals on exterior doors allowing for tightness and stabilising an ideal temperature for placement in areas of extreme temperature or hostile weather environments. Made of stainless steel AISI 304L (EN 14306) with polyester paint finish, and features a handle made of a material highly resistant to vandalism and forced openings. The interior design allows easy placement of racks, mounting plates or separators.

Discover the advantages

Very good mechanical properties and high resistance to shape distortion.
With water repellent injected seal.
Door retained with stoppers.
The enclosure includes anti-vandalism locks and handles suitable for semicylindrical profile locks.
Maintenance free for life over 30 years.
Delvalle can adapt this design to the measurements required by the client, retaining the fundamentals of insulation, sealing and safety.

Regulations

 IP66-IP21-IP43-IP55 Norm EN 62208 and EN 60529.
• Maximum IK10 resistance Norm IEC 62262.
• En 61969-3 Mechanical Structures for Electronic Equipment - outdoor enclosures -.
• IEC 60068-2-30 and IEC 60068-2-11.
• Built to CE standards. 2006/95/CE.
UL approval NºFile E342220.
• Shock resistant against sharp objects EN 60439-5.
RoHs compliant.
• Maximum voltage 1000 V.
Temperature resistant: -40°C +100°C (short time +160°C).
• Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Applications

The Outdoor Telecom Rack Storm Series, design, finishing and sealing make it ideal for outdoor use.

As its name suggests its placement is usually on roads, signalling or lighting, and use in weather stations, telecommunications, telephones, fibre optics and video surveillance in urban or interurban areas.

Custom Made Solutions
We offer multiple solutions

Outdoor Telecom 19 Storm · Delvalle Box
Do you need solutions?
2024 product catalogues

• Designs and pictures available on request.
• Plinths at base for enclosures of any size. They allow enclosures to stand over the floor, with extra room for cable entry. Available 100mm (standard) and 200mm high.
Stainless steel AISI 316L, EN 1.4404.
Ventilation KIT (Fan, resistance heating and dual thermostat).
Graffiti-proof protective paint.
EMC version according to EEC 89/336 of electromagnetic compatibility.
Two versions: galvanized steel and painted galvanized steel
• Self-cooled and with ventilation brackets


Customers also bought:
Lighting for Electrical Enclosures · Delvalle BoxDelvalle Box
Light up your switchboards with our latest generation compact luminaires. Designed for maximum...
Security lock · Delvalle BoxDelvalle Box
Security lock for placement it in electrical cabinets.
Locks · Delvalle BoxDelvalle Box
Depending on the enclosure and its use, we look for the best closure suited to the customer’s...
Assembly Frame · Delvalle BoxDelvalle Box
Chassis modular cabinets. Used to divide the front of the cabinets into several sections for quick...
Insulated Enclosures · Delvalle BoxDelvalle Box
Delvalle I+D deparment has specially designed the insulated enclosures, with TermoTisa X100, in 15mm...
Cable Entry Cover · Delvalle BoxDelvalle Box
Ideal accessory supplement, removable to make holes comfortably to suit your needs, and fitted so...
Clear Glass Door · Delvalle BoxDelvalle Box
All our cabinets are available with transparent exterior and interior doors for perfect vision of...
Roof for Electrical Enclosures · Delvalle BoxDelvalle Box
In Delvalle we offer the possibility to ask for self-ventilated roofs....
Mounting Plates · Delvalle BoxDelvalle Box
Different mounting plates for multiple uses in electrical cabinets Delvalle.
Data Pocket · Delvalle BoxDelvalle Box
Useful to keep electrical drawings, maintenance records, etc.....
Sockets · Delvalle BoxDelvalle Box
Stainless steel plinthbase 100 and 200 mm high. Allows cabinet to be raised and get extra ...
Transportation Angle · Delvalle BoxDelvalle Box
The transportation angles add strength in handling loading and unloading of the cabinets.
Switchboard Graffiti-Proof Paint · Delvalle BoxDelvalle Box
In Delvalle all cabinets may suminstrarse with a protective transparent anti-graffiti paint and...
Anti-Insect System · Delvalle BoxDelvalle Box
We know the problem for the placement of cooling systems posed by the entry of insects inside the...
Perforated Mounting Plate · Delvalle BoxDelvalle Box
Perforated plates for quick installation of electrical components.
Stainless Steel Ventilation Plugs IP68 · Delvalle BoxDelvalle Box
Stainless steel ventilation plugs IP68 reduce the adverse effects of humidity in the environment...
Separating Plate · Delvalle BoxDelvalle Box
Fixed directly to the cabinet structure, to get separation as well as being a shelf for objects.
Pivot Frame · Delvalle BoxDelvalle Box
The ideal solution for the placement of all instrumentation, with easy and comfortable access from...
Ventilation Brackets · Delvalle BoxDelvalle Box
Placed both in the front enclosure and on the side, allowing a perfect flow of air inside.
Eyebolt · Delvalle BoxDelvalle Box
Galvanized in sizes M12 to M20....
DIN Tray · Delvalle BoxDelvalle Box
Directly fixed to the structure. Galvanized 1.5 mm thick steel. Dimensions: 35mm by 7.5 or 5mm.
Safety Lock · Delvalle BoxDelvalle Box
Typically used in enclosures with temporary changes of user. You can also use the padlock seal,...
Set With Inner Door · Delvalle BoxDelvalle Box
Interior door designed for direct placement in the enclosure.
Open Door Security Device · Delvalle BoxDelvalle Box
This device prevents accidents, alerts the operator that the electrical system is functioning...
Designs / Doors · Delvalle BoxDelvalle Box
The possibility of placing a double door in the cabinet is given to meet the customer’s need to...
Limit Switches for Electrical Enclosure · Delvalle BoxDelvalle Box
Thanks to the limit switch for electrical enclosures we get a perfect control cabinet lighting and...
Reinforcing Frame · Delvalle BoxDelvalle Box
Using a reinforced frame in our enclosure gives us more confidence and consistency, especially in...
Sliding Cable Covers · Delvalle BoxDelvalle Box
These caps allow cable entry between them.
Cross Cable Guide · Delvalle BoxDelvalle Box
With this guide inside the door we get a perfectly ordered wiring. Ideal for the passage of...
Protection Frame Window · Delvalle BoxDelvalle Box
Manufactured in stainless steel, it is used to provide maximum viewing capacity of the indication...
Outdoor Air Conditioner Electrical Enclosures IP54 · Delvalle BoxDelvalle Box
The largest range of IP54 air conditioners electrical enclosures refrigerators in the market, air...
Roof Fan · Delvalle BoxDelvalle Box
Roof Fan, specially designed for extracting heat from the top of the cabinet, for achieving...
Waterproof Seal · Delvalle BoxDelvalle Box
Injected waterproof seal UL, TÜV, CE certified. ...
Outdoor Telecom 19 Storm · Delvalle Box

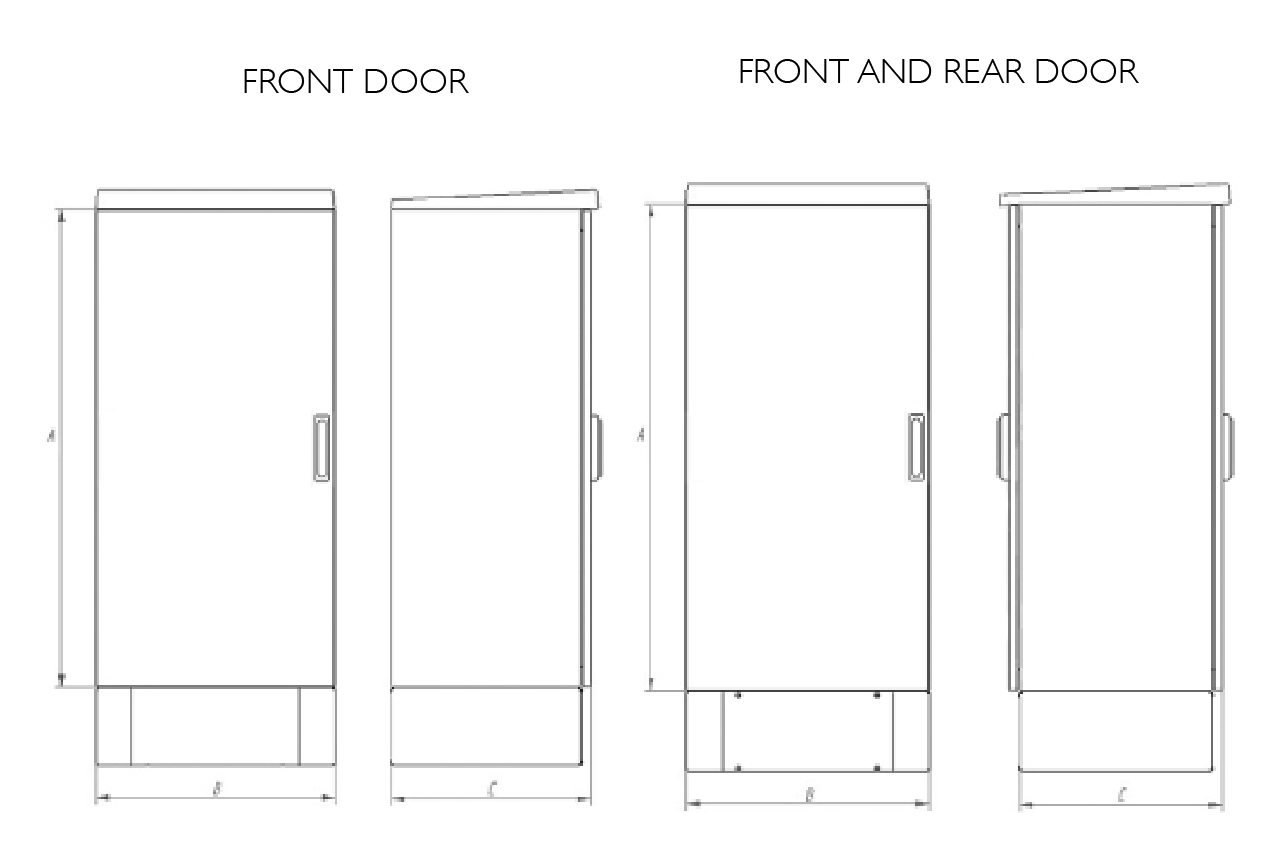

Sketches
