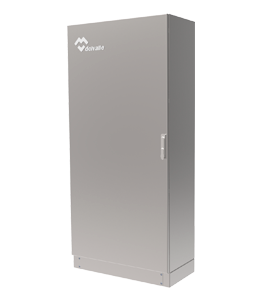

Stainless Steel Free-Standing Enclosure IP66

TRIBECA SERIES

Stainless steel Free standing enclosures and cabinets Tribeca IP66 series with improved design, robust, easy opening by rotating handle and four point lock, easy placement on the floor, flexible, maximum working width and a unique design in stainless steel AISI 304L & AISI 316L

This product has the following certificates

Description

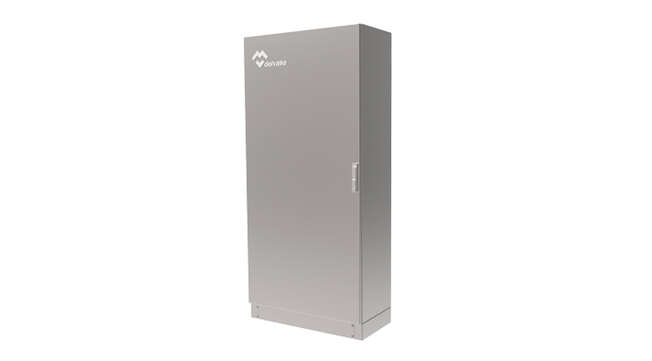

Tribeca compact cabinet series with improved design, robust, easy opening by rotating handle and four point lock, easy placement on the floor, flexible, maximum working width and a unique design in stainless steel AISI 304L.

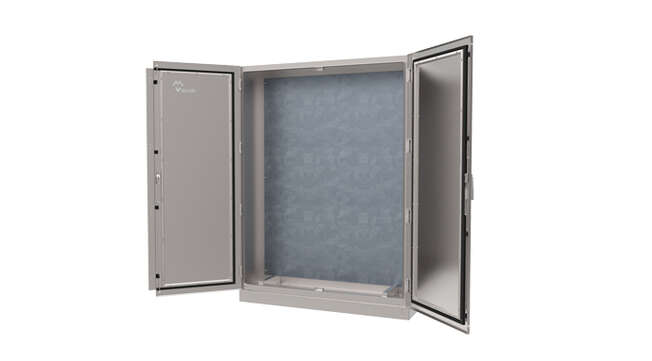

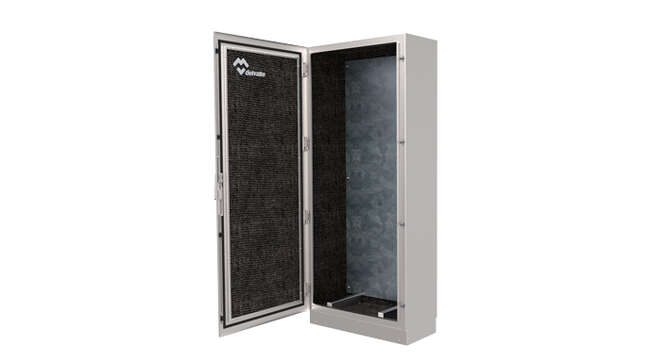

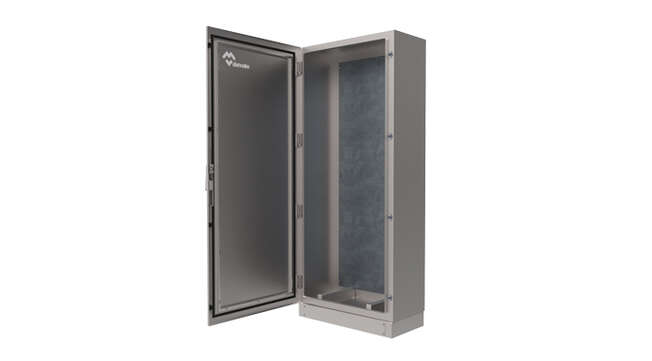

Available in one or two doors, 120° swivel, easily removable. We recommend cable entry hollow base.

Download all documents and certificates

Do you need extra info?
In DELVALLE, WE make IT EASY for you

Discover the advantages

Supplied with protective film to prevent scratches and abrasions during handling.
The manufacture of the stainless steel monobloc allows sealing and maximum resistance.
A drainage canal prevents liquid contact with the polyurethane gasket and with concealed hinges.
100% Stainless steel, from handle to opening system.
Standard electrical panel with handle lock with four locking points and concealed stainless steel hinges.
Delvalle made to order in any size to suit your needs and all drilling holes, both for the door and the enclosure.
Distributed load 600 kg.

Regulations

To IP66 Norm IEC 60529.
DIN EN ISO 14159 Machine safety – hygiene requirements pertaining to the design of machinery.
Machinery Directive 2006/42/EC. Food machinery and cosmetic or pharmaceutic production.
EHEDG Guideline Hygienic Design doc.13 machinery for open processes.
DIN EN 1672-2-2005 for food industry machinery.
Maximum IK10 resistance Norm IEC 62262.
Manufactured following EU low voltage ruling 2014/35/UE.
Materials intended to come into contact with food EC 1935/2004.
RoHs compliant.
UL approval Nema 4x, 12, 3r, 1. Nº File E342220.
Maximum voltage 1000 V.
Temperature resistant: -40ºC +100ºC (short time +160ºC).
Option silicone gasket: from –60°C to +180°C (short time up to +350°C).

Applications

• Especially designed for automatic positioning, machine control, meters and where smartness, quality and durability are necessary.
• Electrical control panel approved for food, chemical, pharmaceutical, processing centers, telecommunications and outdoor use because of its advantages of durability and chemical resistance.

Custom Made Solutions
We offer multiple solutions

Stainless Steel Free-Standing Enclosure IP66 · Delvalle Box

Do you need solutions?

Delvalle Box has the solution

2025 product catalogues

Download Zone

Up to IP69K -DIN 40050-9.
Option painted galvanized steel finish in RAL 7035 or another color.
Custom made based on your needs.

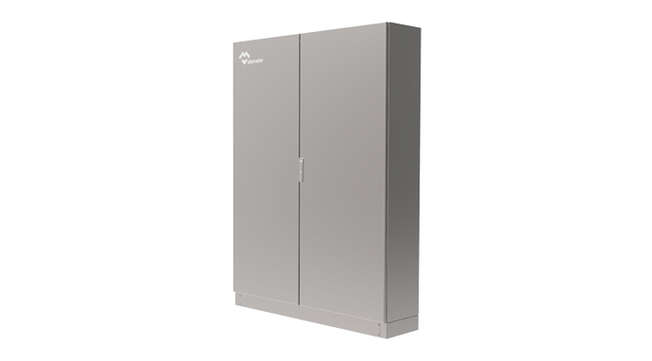

With a choice of two doors (from 1200mm width).
Plinths at base, castors.
Metal legs.
Clear polycarbonate door transparent safety glass door (no IP69K).
Manufactured in stainless steel AISI 316L EN 14404.
Mounting plate insulator (bakelite) or stainless steel.
EMC version according to 2014/30/UE of electromagnetic compatibility.

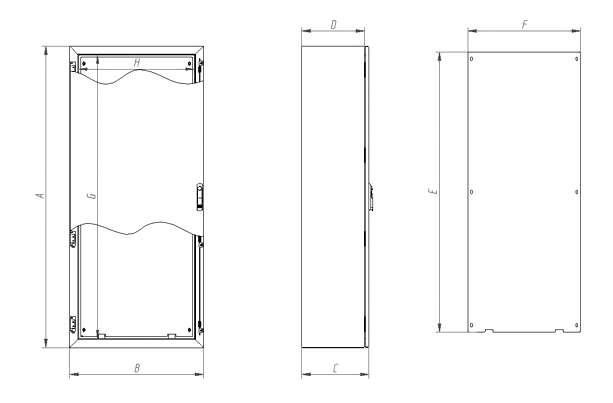

Sketches

References

Show References

Reference	Description	High	Width	Background
MVAC166040	STAINLESS STEEL ENCLOSURE TRIBECA SERIES	1650	600	400	MVAC166040
MVAC168040	STAINLESS STEEL ENCLOSURE TRIBECA SERIES	1650	800	400	MVAC168040
MVAC161040	STAINLESS STEEL ENCLOSURE TRIBECA SERIES	1650	1000	400	MVAC161040
MVAC161240	STAINLESS STEEL ENCLOSURE TRIBECA SERIES 2 DOORS	1650	1200	400	MVAC161240
MVAC186040	STAINLESS STEEL ENCLOSURE TRIBECA SERIES	1800	600	400	MVAC186040
MVAC188040	STAINLESS STEEL ENCLOSURE TRIBECA SERIES	1800	800	400	MVAC188040
MVAC188050	STAINLESS STEEL ENCLOSURE TRIBECA SERIES	1800	800	500	MVAC188050
MVAC181040	STAINLESS STEEL ENCLOSURE TRIBECA SERIES	1800	1000	400	MVAC181040
MVAC181050	STAINLESS STEEL ENCLOSURE TRIBECA SERIES	1800	1000	500	MVAC181050
MVAC181240	STAINLESS STEEL ENCLOSURE TRIBECA SERIES 2 DOORS	1800	1200	400	MVAC181240
MVAC181250	STAINLESS STEEL ENCLOSURE TRIBECA SERIES 2 DOORS	1800	1200	500	MVAC181250
MVAC206040	STAINLESS STEEL ENCLOSURE TRIBECA SERIES	2000	600	400	MVAC206040
MVAC208040	STAINLESS STEEL ENCLOSURE TRIBECA SERIES	2000	800	400	MVAC208040
MVAC208050	STAINLESS STEEL ENCLOSURE TRIBECA SERIES	2000	800	500	MVAC208050
MVAC201040	STAINLESS STEEL ENCLOSURE TRIBECA SERIES	2000	1000	400	MVAC201040
MVAC201050	STAINLESS STEEL ENCLOSURE TRIBECA SERIES	2000	1000	500	MVAC201050
MVAC201240	STAINLESS STEEL ENCLOSURE TRIBECA SERIES 2 DOORS	2000	1200	400	MVAC201240
MVAC201250	STAINLESS STEEL ENCLOSURE TRIBECA SERIES 2 DOORS	2000	1200	500	MVAC201250
MVAC201440	STAINLESS STEEL ENCLOSURE TRIBECA SERIES 2 DOORS	2000	1400	400	MVAC201440
MVAC201450	STAINLESS STEEL ENCLOSURE TRIBECA SERIES 2 DOORS	2000	1400	500	MVAC201450
MVAC201640	STAINLESS STEEL ENCLOSURE TRIBECA SERIES 2 DOORS	2000	1600	400	MVAC201640
MVAC201650	STAINLESS STEEL ENCLOSURE TRIBECA SERIES 2 DOORS	2000	1600	500	MVAC201650
MVACT166040	STAINLESS STEEL ENCLOSURE TRIBECA SERIES CLEAR POLYCARBONATE DOOR	1650	600	400	MVACT166040
MVACT168040	STAINLESS STEEL ENCLOSURE TRIBECA SERIES CLEAR POLYCARBONATE DOOR	1650	800	400	MVACT168040
MVACT161040	STAINLESS STEEL ENCLOSURE TRIBECA SERIES CLEAR POLYCARBONATE DOOR	1650	1000	400	MVACT161040
MVACT161240	STAINLESS STEEL ENCLOSURE TRIBECA SERIES 2 CLEAR POLYCARBONATE DOORS	1650	1200	400	MVACT161240
MVACT186040	STAINLESS STEEL ENCLOSURE TRIBECA SERIES CLEAR POLYCARBONATE DOOR	1800	600	400	MVACT186040
MVACT188040	STAINLESS STEEL ENCLOSURE TRIBECA SERIES CLEAR POLYCARBONATE DOOR	1800	800	400	MVACT188040
MVACT188050	STAINLESS STEEL ENCLOSURE TRIBECA SERIES CLEAR POLYCARBONATE DOOR	1800	800	500	MVACT188050
MVACT181240	STAINLESS STEEL ENCLOSURE TRIBECA SERIES 2 CLEAR POLYCARBONATE DOORS	1800	1200	400	MVACT181240
MVACT181250	STAINLESS STEEL ENCLOSURE TRIBECA SERIES 2 CLEAR POLYCARBONATE DOORS	1800	1200	500	MVACT181250
MVACT206040	STAINLESS STEEL ENCLOSURE TRIBECA SERIES CLEAR POLYCARBONATE DOOR	2000	600	400	MVACT206040
MVACT208040	STAINLESS STEEL ENCLOSURE TRIBECA SERIES CLEAR POLYCARBONATE DOOR	2000	800	400	MVACT208040
MVACT208050	STAINLESS STEEL ENCLOSURE TRIBECA SERIES CLEAR POLYCARBONATE DOOR	2000	800	500	MVACT208050
MVACT201040	STAINLESS STEEL ENCLOSURE TRIBECA SERIES CLEAR POLYCARBONATE DOOR	2000	1000	400	MVACT201040
MVACT201050	STAINLESS STEEL ENCLOSURE TRIBECA SERIES CLEAR POLYCARBONATE DOOR	2000	1000	500	MVACT201050
MVACT201240	STAINLESS STEEL ENCLOSURE TRIBECA SERIES 2 CLEAR POLYCARBONATE DOORS	2000	1200	400	MVACT201240
MVACT201250	STAINLESS STEEL ENCLOSURE TRIBECA SERIES 2 CLEAR POLYCARBONATE DOORS	2000	1200	500	MVACT201250
MVACT201440	STAINLESS STEEL ENCLOSURE TRIBECA SERIES 2 CLEAR POLYCARBONATE DOORS	2000	1400	400	MVACT201440
MVACT201450	STAINLESS STEEL ENCLOSURE TRIBECA SERIES 2 CLEAR POLYCARBONATE DOORS	2000	1400	500	MVACT201450
MVACT201640	STAINLESS STEEL ENCLOSURE TRIBECA SERIES 2 CLEAR POLYCARBONATE DOORS	2000	1600	400	MVACT201640
MVACT201650	STAINLESS STEEL ENCLOSURE TRIBECA SERIES 2 CLEAR POLYCARBONATE DOORS	2000	1600	500	MVACT201650
MVACT186050	STAINLESS STEEL ENCLOSURE TRIBECA SERIES CLEAR POLYCARBONATE DOOR	1800	1000	400	MVACT186050
