Nema Enclosures with Disconnect Switches

Installed on Nema 1, 3r, 4x, 12 enclosures, disconnect switches can be used at both indoor and outdoor applications. Together with a system of enclosure-and-door interlocks, disconnect switches provide an additional level of safety by preventing operators from opening any door when the disconnect switch is energized.
We manufacture both single and multi-door disconnect switches.
Cable Operated System Thinner cable design for more flexibility and lower bend diameter.

This product has the following certificates

  • Logo CE · Delvalle Box
  • Logo IP55 · Delvalle Box
  • Logo IP65 · Delvalle Box
  • Logo IP66 · Delvalle Box
  • Logo UL NEMA 1 · Delvalle Box
  • Logo UL NEMA 12 · Delvalle Box
  • Logo UL NEMA 3R · Delvalle Box
  • Logo UL NEMA 4 · Delvalle Box
  • Logo UL NEMA 4X · Delvalle Box
  • Logo 10 year anti-corrosion · Delvalle Box
  • Logo Chemical resistant · Delvalle Box
  • Logo Corrosion resistant · Delvalle Box
  • Logo Scrach resistant · Delvalle Box
  • Logo Waterproof · Delvalle Box

Description

Installed on Nema 1, 3r, 4x, 12 enclosures, disconnect switches can be used at both indoor and outdoor applications. Together with a system of enclosure-and-door interlocks, disconnect switches provide an additional level of safety by preventing operators from opening any door when the disconnect switch is energized.
We manufacture both single and multi-door disconnect switches.
Cable Operated System Thinner cable design for more flexibility and lower bend diameter.

Discover the advantages

Fuse admits Class E, H, J and R
Switch  30….600A
Enclosure Options:
Painted steel: NEMA 1/3R/4/12
Stainless steel or aluminium: NEMA 4/4X


Regulations

  • IP66 (W) Norm IEC 60529.
  • Maximum IK10 resistance Norm IEC 62262
  • Manufactured following EU low voltage ruling 2014/35/UE
  • Materials intended to come into contact with food EC 1935/2004
  • RoHs compliant
  • UL approval Nema 4x, 12, 3r, 1. NºFile E342220
  • Maximum voltage 1000 V
  • Temperature resistant: -40ºC +100ºC (short time +160ºC.)
  • Option silicone gasket: from –60° C to +180° C (short time up to +350° C)
  • IEC 60947
  • UL 508 Listed
  • UL 98
  • CE Marked
  • CSA C22.2 Nº 4
  • Nema 1/3r/4/4x/12

Applications

Automotive
Machinery Food & Beverage
Packaging
Oil & Gas
Water/Wastewater
Paper & Packaging
Utilities & Mining
Industrial Manufacturing

Nema Enclosures with Disconnect Switches · Delvalle Box

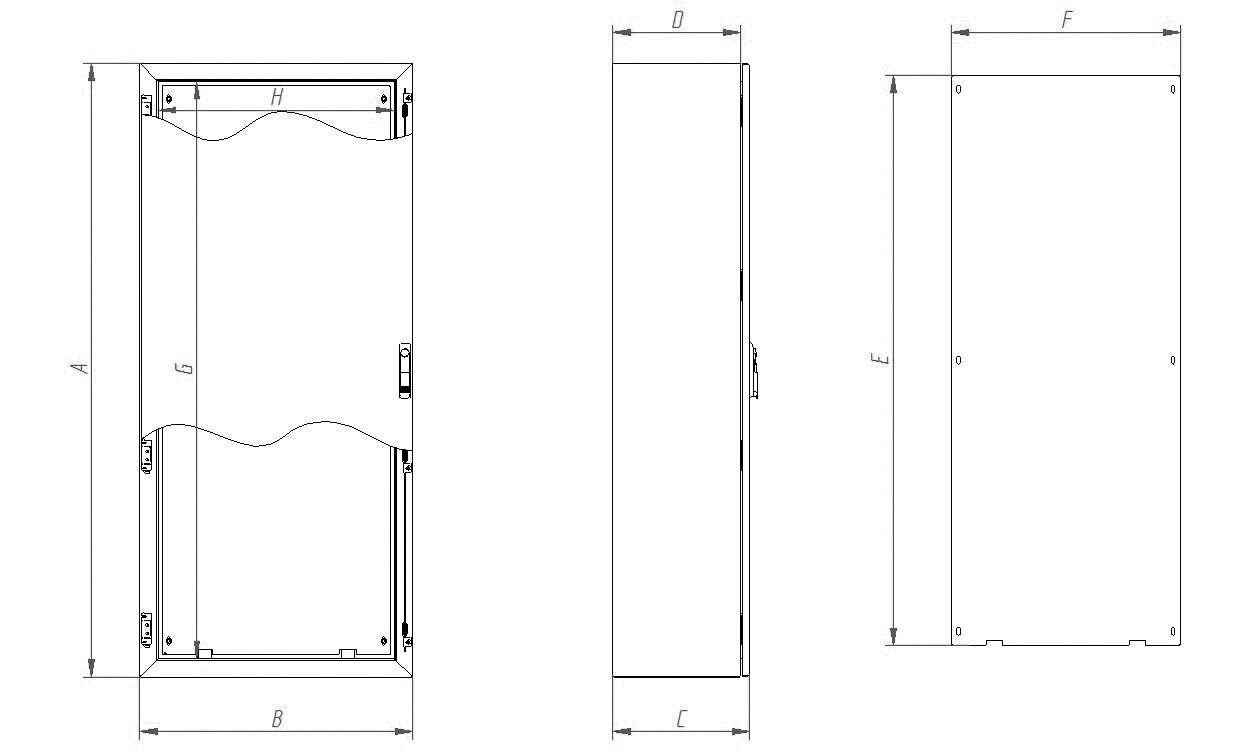

Sketches

Dimensions · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
MVAC165440DSC1 DOOR1650540400MVAC165440DSC
MVAC167440DSC1 DOOR1650740400MVAC167440DSC
MVAC169440DSC1 DOOR1650940400MVAC169440DSC
MVAC185440DSC1 DOOR1800540400MVAC185440DSC
MVAC187440DSC1 DOOR1800740400MVAC187440DSC
MVAC187450DSC1 DOOR1800740500MVAC187450DSC
MVAC189440DSC1 DOOR1800940400MVAC189440DSC
MVAC189450DSC1 DOOR1800940500MVAC189450DSC
MVAC205440DSC1 DOOR2000540400MVAC205440DSC
MVAC207440DSC1 DOOR2000740400MVAC207440DSC
MVAC207450DSC1 DOOR2000740500MVAC207450DSC
MVAC209440DSC1 DOOR2000940400MVAC209440DSC
MVAC209450DSC1 DOOR2000940500MVAC209450DSC
MVAC161140DSC2 DOORS16501140400MVAC161140DSC
MVAC181140DSC2 DOORS18001140400MVAC181140DSC
MVAC181150DSC2 DOORS18001140500MVAC181150DSC
MVAC201140DSC2 DOORS20001140400MVAC201140DSC
MVAC201150DSC2 DOORS20001140500MVAC201150DSC
MVAC201340DSC2 DOORS20001340400MVAC201340DSC
MVAC201350DSC2 DOORS20001340500MVAC201350DSC
MVAC201540DSC2 DOORS20001540400MVAC201540DSC
MVAC201550DSC2 DOORS20001540500MVAC201550DSC
