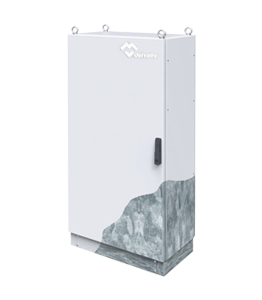

Modular Galvanized Steel Enclosure Titan IP66

TITAN SERIES

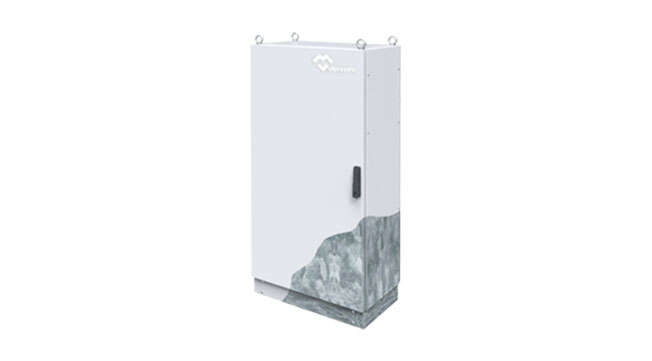

The painted galvanized steel enclosures Titan Series are modular, fully customizable, flexible environments for food industries, petrochemical, pharmaceutical, power, which need a presence, hygiene, sealing and longer service life.

Modular Galvanized Steel Enclosure Titan IP66 · Delvalle Box

This product has the following certificates

  • Logo CE · Delvalle Box
  • Logo IP55 · Delvalle Box
  • Logo IP65 · Delvalle Box
  • Logo IP66 · Delvalle Box
  • Logo UL NEMA 1 · Delvalle Box
  • Logo UL NEMA 12 · Delvalle Box
  • Logo UL NEMA 3R · Delvalle Box
  • Logo UL NEMA 4 · Delvalle Box

Description

The painted galvanized steel enclosures Titan Series are modular, fully customizable, flexible environments for food industries, petrochemical, pharmaceutical, power, which need a presence, hygiene, sealing and longer service life. The doors are hinged and easily removable with a 120 ° opening, side, rear and top and bottom are removable by screws. Finished in RAL 7035, chrome fasteners and stainless steel hinges.

Discover the advantages

• Broad assembly area and great accessibility.
• Endless choices, modules and measurements.
• Welded body, which gives it great strength.
• Side rear, top and bottom panels, easily removable.
• Door opens to 120°.
• Standard with chrome fasteners and stainless steel hinges.
• Perfect sealing thanks to gaskets used in the joints.
Delvalle supplies any measurements required including custom built holes and cut outs both for the door and enclosure.
• Distribuited load 1000 kg.

Regulations

• IEC 60529 norm IP66.
• UL approval Nema 1, 3r, 4 y 12. Nº File E342220.
• IEC 62262 norm. Maximum IK10 resistance.
• 2014/35/UE directive. Low voltage ruling directive.
• Maximum voltage 1000 V.
• Temperature resistant: -40°C +100°C (short time +160°C).
• Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Applications

Specially designed for outdoor installations. Due to its versatility it can be placed in the food, pharmaceutical, where hygiene is essential, as in petrochemicals, power, where the sealing is critical and industrial environments in general.

Custom Made Solutions
We offer multiple solutions

Modular Galvanized Steel Enclosure Titan IP66 · Delvalle Box
Do you need solutions?
2024 product catalogues

• Custom made based on your needs. With the possibility to join several modules.
• Switchboard graffiti-proof pain.
• Socles. Swing rack. All types of ventilation.
• Eyebolt (not included in standard model).
• Cable entry cover at base.
• Metal legs and wheels.
• Transparent polycarbonate door, with tempered glass or with safety glass.
• Mounting plate insulator (bakelite) or painted steel.
• EMC version according to 2014/30/UE of electromagnetic compatibility.

Modular Galvanized Steel Enclosure Titan IP66 · Delvalle Box

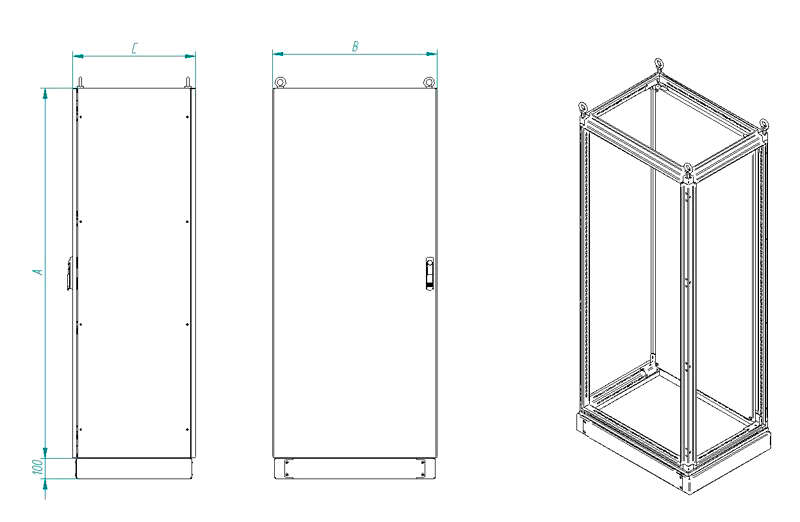

Sketches

Modular Galvanized Steel Enclosure Titan IP66 · Delvalle Box

References

Show References
ReferenceDescriptionHighWidthBackground
AMCG181050/2ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA18001000500AMCG181050/2
AMCG181060/2ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA18001000600AMCG181060/2
AMCG201040/2ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA20001000400AMCG201040/2
AMCG201050/2ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA20001000500AMCG201050/2
AMCG201240/2ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA20001200400AMCG201240/2
AMCG201250/2ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA20001200500AMCG201250/2
AMCG201260/2ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA20001200600AMCG201260/2
AMCG201280/2ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA20001200800AMCG201280/2
AMCG221080/2ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA22001000800AMCG221080/2
AMCG221260/2ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA22001200600AMCG221260/2
AMCG221280/2ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA22001200800AMCG221280/2
AMCG181050/2TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA TRANSPARENTE18001000500AMCG181050/2T
AMCG181060/2TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA TRANSPARENTE18001000600AMCG181060/2T
AMCG201040/2TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA TRANSPARENTE20001000400AMCG201040/2T
AMCG201050/2TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA TRANSPARENTE20001000500AMCG201050/2T
AMCG201240/2TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA TRANSPARENTE20001200400AMCG201240/2T
AMCG201250/2TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA TRANSPARENTE20001200500AMCG201250/2T
AMCG201260/2TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA TRANSPARENTE20001200600AMCG201260/2T
AMCG201280/2TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA TRANSPARENTE20001200800AMCG201280/2T
AMCG221080/2TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA TRANSPARENTE22001000800AMCG221080/2T
AMCG221260/2TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA TRANSPARENTE22001200600AMCG221260/2T
AMCG221280/2TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN DOBLE PUERTA TRANSPARENTE22001200800AMCG221280/2T
AMCG126040ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1200600400AMCG126040
AMCG126060ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1200600600AMCG126060
AMCG126080ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1200600800AMCG126080
AMCG128040ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1200800400AMCG128040
AMCG128060ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1200800600AMCG128060
AMCG128080ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1200800800AMCG128080
AMCG146040ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1400600400AMCG146040
AMCG146060ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1400600600AMCG146060
AMCG146080ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1400600800AMCG146080
AMCG148040ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1400800400AMCG148040
AMCG148060ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1400800600AMCG148060
AMCG148080ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1400800800AMCG148080
AMCG166040ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1600600400AMCG166040
AMCG166060ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1600600600AMCG166060
AMCG166080ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1600600800AMCG166080
AMCG168040ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1600800400AMCG168040
AMCG168060ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1600800600AMCG168060
AMCG168080ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1600800800AMCG168080
AMCG161040ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA16001000400AMCG161040
AMCG161060ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA16001000600AMCG161060
AMCG161080ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA16001000800AMCG161080
AMCG161240ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA16001200400AMCG161240
AMCG161260ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA16001200600AMCG161260
AMCG161280ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA16001200800AMCG161280
AMCG186040ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1800600400AMCG186040
AMCG186050ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1800600500AMCG186050
AMCG186060ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1800600600AMCG186060
AMCG186080ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1800600800AMCG186080
AMCG188040ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1800800400AMCG188040
AMCG188050ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1800800500AMCG188050
AMCG188060ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1800800600AMCG188060
AMCG188080ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1800800800AMCG188080
AMCG181040ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA1800800400AMCG181040
AMCG181050ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA18001000500AMCG181050
AMCG181060ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA18001000600AMCG181060
AMCG181080ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA18001000800AMCG181080
AMCG181250ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA18001200500AMCG181250
AMCG181260ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA18001200600AMCG181260
AMCG181280ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA18001200800AMCG181280
AMCG206040ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA2000600400AMCG206040
AMCG206050ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA2000600500AMCG206050
AMCG206060ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA2000600600AMCG206060
AMCG206080ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA2000600800AMCG206080
AMCG208040ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA2000800400AMCG208040
AMCG208050ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA2000800500AMCG208050
AMCG208060ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA2000800600AMCG208060
AMCG208080ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA2000800800AMCG208080
AMCG208010ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA20008001000AMCG208010
AMCG201040ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA20001000400AMCG201040
AMCG201050ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA20001000500AMCG201050
AMCG201060ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA20001000600AMCG201060
AMCG201080ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA20001000800AMCG201080
AMCG226060ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA2200600600AMCG226060
AMCG226080ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA2200600800AMCG226080
AMCG228060ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA2200800600AMCG228060
AMCG228080ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA2200800800AMCG228080
AMCG221060ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA22001000600AMCG221060
AMCG221080ARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA CIEGA22001000800AMCG221080
AMCG126040TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1200600400AMCG126040T
AMCG126060TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1200600600AMCG126060T
AMCG126080TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1200600800AMCG126080T
AMCG128040TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1200800400AMCG128040T
AMCG128060TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1200800600AMCG128060T
AMCG128080TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1200800800AMCG128080T
AMCG146040TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1400600400AMCG146040T
AMCG146060TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1400600600AMCG146060T
AMCG146080TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1400600800AMCG146080T
AMCG148040TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1400800400AMCG148040T
AMCG148060TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1400800600AMCG148060T
AMCG148080TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1400800800AMCG148080T
AMCG166040TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1600600400AMCG166040T
AMCG166060TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1600600600AMCG166060T
AMCG166080TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1600600800AMCG166080T
AMCG168040TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1600800400AMCG168040T
AMCG168060TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1600800600AMCG168060T
AMCG168080TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1600800800AMCG168080T
AMCG161040TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE16001000400AMCG161040T
AMCG161060TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE16001000600AMCG161060T
AMCG161080TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE16001000800AMCG161080T
AMCG161240TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE16001200400AMCG161240T
AMCG161260TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE16001200600AMCG161260T
AMCG161280TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE16001200800AMCG161280T
AMCG186040TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1800600400AMCG186040T
AMCG186050TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1800600500AMCG186050T
AMCG186060TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1800600600AMCG186060T
AMCG186080TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1800600800AMCG186080T
AMCG186080TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1800800400AMCG186080T
AMCG188050TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1800800500AMCG188050T
AMCG188060TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1800800600AMCG188060T
AMCG188080TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE1800800800AMCG188080T
AMCG181040TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE18001000400AMCG181040T
AMCG181050TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE18001000500AMCG181050T
AMCG181060TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE18001000600AMCG181060T
AMCG181080TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE18001000800AMCG181080T
AMCG181240TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE18001200400AMCG181240T
AMCG181250TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE18001200500AMCG181250T
AMCG181260TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE18001200600AMCG181260T
AMCG181280TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE18001200800AMCG181280T
AMCG206040TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE2000600400AMCG206040T
AMCG206050TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE2000600500AMCG206050T
AMCG206060TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE2000600600AMCG206060T
AMCG206080TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE2000600800AMCG206080T
AMCG208040TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE2000800400AMCG208040T
AMCG208050TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE2000800500AMCG208050T
AMCG208060TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE2000800600AMCG208060T
AMCG208080TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE2000800800AMCG208080T
AMCG208010TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE20008001000AMCG208010T
AMCG201040TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE20001000400AMCG201040T
AMCG201050TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE20001000500AMCG201050T
AMCG201060TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE20001000600AMCG201060T
AMCG201080TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE20001000800AMCG201080T
AMCG226060TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE2200600600AMCG226060T
AMCG226080TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE2200800600AMCG226080T
AMCG228080TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE2200800800AMCG228080T
AMCG221060TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE22001000600AMCG221060T
AMCG221080TARMARIO GALVANIZADO PINTADO MODULAR IP65-66 TITAN PUERTA TRANSPARENTE22001000800AMCG221080T
Port of Barcelona · Delvalle Box
Spain
To measure particles in environments contaminated by chlorinated hydrocarbons (HCH) in the Port of...
The NN CMC Warp Speed Project by Novo Nordisk · Delvalle Box
Denmark
In Denmark, Delvalle has collaborated on the NN CMC Warp Speed project of the pharmaceutical company...
Collaboration on the
France
At Delvalle Box, we participated in the "Les Alizés" ship project in France, developed by Jan de...
Innovation in the Novo Nordisk Project · Delvalle Box
Denmark
The Novo Nordisk project in Denmark implements a real-time modeling system (RTMS). To ensure maximum...
Innovation in Salmon Processing (Norway) · Delvalle Box
Norway
An innovative salmon farming and processing project in Norway focuses on improving the packaging and...
Railway Infrastructure MONORAIL EGYPT · Delvalle Box
Egypt
Delvallebox Supplies Geo Inox Enclosures for the Monorail in Egypt...
Water Treatment (Bilbao) · Delvalle Box
Spain
Ferrovial has carried out a flow transmitter project in Bizkaia, Spain, for which Delvallebox has...
Dynamic charging of electric vehicles (Sweden) · Delvalle Box
Sweden
Sweden builds first road capable of charging electric vehicles on the move...
Solar Self-Consumption in Public Institutions · Delvalle Box
Spain
Logroño advances towards energy sustainability with a new solar self-consumption project in six...
Modernization of Water Treatment Plants · Delvalle Box
Spain
The distribution network of ATL, which supplies drinking water to 117 municipalities in nine regions...
AVE León-Asturias · Delvalle Box
Spain
The high-speed line León-Asturias, which connects León with the stations of Oviedo and Gijón...
Maritime Cargo Port in Callao · Delvalle Box
Peru
APM Terminals Callao in Peru has made a significant investment to improve its operations at the...
Södra Länken Tunnel (Sweden) · Delvalle Box
Sweden
The Södra Länken tunnel, located in Stockholm, is one of Sweden's most ambitious...
Santiago Bernabéu Renovation · Delvalle Box
Spain
The ambitious renovation of the iconic Santiago Bernabéu Stadium in Madrid has been successfully...
New Bimbo Production Plant (Mexico) · Delvalle Box
Mexico
The multinational company Bimbo has inaugurated its largest distribution plant in Mexico City,...
Baron De Ley Winery · Delvalle Box
Spain
Success in Implementing Stainless Steel Electrical enclosures at Baron de Ley Winery....
Marine Farms · Delvalle Box
Norway
We are pleased to announce that Delvalle, as a global leader in electrical enclosures, has taken a...
Finch West Light Rail Transit · Delvalle Box
Canada
Toronto is in search of innovative solutions to improve its public transportation system. The...
Ship Launch and Recovery System · Delvalle Box
Netherlands
As a leading company in the maritime industry, Delvalle has developed offshore electrical enclosures...
La Fontaine Bridge Tunnel · Delvalle Box
Canada
The Louis-Hippolyte-La Fontaine Bridge Tunnel in Montreal, Canada, was in a critical state of...
Turrets for Port Ginesta · Delvalle Box
Spain
The largest marina in the country, Port Ginesta (Sitges), will invest in major infrastructure...
Motion Compensation Technology for the Marine Wind Industry · Delvalle Box
Netherlands
The main challenge faced by the offshore wind industry is the constant action of waves and...
Combined Cycle Power Plant Sun Ba II · Delvalle Box
Taiwan (Province of China)
The Sun Ba II gas-fired combined cycle power plant is a 1.1 GW power plant currently under...
Partial Discharge Monitoring (Hong Kong) · Delvalle Box
China
Hong Kong is at the forefront of implementing new technologies to transform its conventional...
Offshore Wind Farm Binh Dai · Delvalle Box
Vietnam
The ambitious renewable energy project of the offshore wind farm Binh Dai, with a capacity of 310MW...
Temane Combined Cycle Power Plant · Delvalle Box
Mozambique
In a significant energy infrastructure project in Mozambique, Delvalle has played a crucial role by...
Stockholm Metro Lines · Delvalle Box
Sweden
In the heart of Stockholm, Sweden, an ambitious metro expansion plan is underway to improve the...
Combined Cycle Power Plant Sauz II · Delvalle Box
Mexico
Combined Cycle Power Plant Sauz II aims to expand the capacity for electricity generation and...
Onshore Wind Farm Oelsig (Brandenburg) · Delvalle Box
Germany
The Oelsig onshore wind farm, located in the stunning landscape of Brandenburg, Germany, faced a...
The Gibraltar Airport Tunnel · Delvalle Box
United Kingdom
In an increasingly interconnected world, safety and efficiency in air traffic are of vital...
Combined Cycle Power Plant UTE GNA II · Delvalle Box
Brazil
We are proud to announce that Delvalle has been selected as the official supplier of cable glands...
The Barcelona Suburban Railway Line (Rodalíes) · Delvalle Box
Spain
The R4 line of Rodalies de Catalunya (Barcelona suburban trains) runs between San Vicente de Calders...
Adolfo Suárez Airport · Delvalle Box
Spain
Adolfo Suárez Airport, one of the busiest airports in Spain, needed a solution that would allow the...
Broadcasting Soccer Matches · Delvalle Box
Egypt
The passion for football in Egypt is reflected in the vibrant atmosphere experienced during matches....
Thermal Power Plant Modesto Maranzana · Delvalle Box
Argentina
The Modesto Maranzana Thermoelectric Power Plant, located in a high-performance industrial...
Photovoltaic Plant · Delvalle Box
Israel
Israel stands out for its forward-thinking approach to renewable energies and is undergoing an...
General Motors · Delvalle Box
Canada
General Motors (GM) Canada faced the critical need for adequate protection of their electrical...
Boiler Foundation (Scotland) · Delvalle Box
United Kingdom
The design and calculation of the foundation for supporting three impressive boilers for Navantia...
Torrelavega Substation · Delvalle Box
Spain
Torrelavega Substation plays an important role in supplying electrical power to the Cantabria...
Railway Network (Taiwan) · Delvalle Box
China
The railway network of Taiwan is the transportation system that connects various cities and regions,...
Passenger Boarding Bridges at Miami Airport · Delvalle Box
United States
Miami International Airport, known as MIA, is one of the largest and busiest airports in the United...
Olympic International City Stadium · Delvalle Box
Egypt
The stadium of the new Olympic International City in Egypt is a venue built in the New...
Combined Cycle Power Plant (Valladolid) · Delvalle Box
Mexico
A combined cycle power plant is an electricity generation facility that uses two heat cycles to...
San Serván 220 Collector Substation (Extremadura) · Delvalle Box
Spain
Photovoltaic plants in Extremadura benefit from favorable climatic conditions for the development of...
Barcelona Port Walkways · Delvalle Box
Spain
The port of Barcelona is one of the most important ports in the Mediterranean. It is strategically...
Combined Cycle Power Plant (Merida) · Delvalle Box
Mexico
Combined cycle power plants are widely used around the world and are an important source of...
Smestad and Sogn Substations · Delvalle Box
Norway
The electric cables between the Smestad and Sogn substations in Oslo are outdated and need to be...
Olmeca Refinery (Dos Bocas) · Delvalle Box
Mexico
By constructing the Olmeca Refinery (formerly called Dos Bocas) and with the purpose of...
Oil Wells · Delvalle Box
Libya
Through a leading energy technology company, these oil wells will be carried out to offer solutions...
Offshore Floating Installation Vessel · Delvalle Box
Netherlands
Building offshore is not an easy task given the inclement weather conditions along with the...
Ministry of Defense · Delvalle Box
Netherlands
The Ministry of Defense of the Netherlands sought a solution to protect its telecommunications...
Airbus Radars · Delvalle Box
France
A well-known distributor based in Aucamville (France) that operates in the electricity sector,...
Toulouse Airport · Delvalle Box
France
An important French construction group has been controlling the operations of Toulouse airport since...
Resort Caribe · Delvalle Box
Netherlands
Royal Palm Beach Resort is situated on one of the largest inland lagoons of the Caribbean Sea...
Conversion from Gas to Combined Cycle Plant · Delvalle Box
Colombia
The power plant in Cartagena de Indias (Colombia) has been converted from gas-fired (simple cycle)...
Sydney Metro · Delvalle Box
Australia
The Sydney Metro Northwest comprises the first phase of eight train stations and 36 kilometres of...
Platform for Hydrogen or Electric Vehicles · Delvalle Box
France
A leading global manufacturer has announced its new range of platforms for all types of rigid trucks...
ELT Telescope - Cells Mirror · Delvalle Box
Chile
The Extremely Large Telescope (ELT) is a revolutionary new ground - based telescope project that...
Calvados Offshore Wind Farm · Delvalle Box
France
Calvados offshore wind farm is located more than 10 kilometers off the coast of Bessin, is expected...
Port of Fujairah Bulk Handling Terminal · Delvalle Box
United Arab Emirates
The port of Fujairah handling terminal facility will be designed to transport and load materials...
Atinkou Combined-Cycle Power Plant · Delvalle Box
Côte d'Ivoire
The supply of the Atinkou combined-cycle power plant is the largest project of its kind in Ivory...
Boston Logan International Airport · Delvalle Box
United States
Boston Logan International Airport is located in the city of Boston, Massachusetts, in the United...
Baltic Eagle Offshore Wind Farm · Delvalle Box
Germany
The Iberdrola group will build its second major wind power project in the Baltic Sea (Baltic Eagle)....
Fécamp Offshore Wind Farm · Delvalle Box
France
The project is located in the eastern part of the English Channel (France), off the coast of...
Signalling and Telecom Systems for the Region’s Largest Railway Project · Delvalle Box
Saudi Arabia
The Northern Train project in the Kingdom of Saudi Arabian is the longest railway in the world...
Electric Power for Outdoor Field Hospitals · Delvalle Box
Spain
Field hospitals are defined as a mobile, self-contained and self-sufficient health care facility...
HES Hartel Tank Terminal · Delvalle Box
Netherlands
The Hes Hartel Tank Terminal is developed at the Maasvalkte in the port of Rotterdam, Netherlands....
Hiep Thanh Nearshore Wind Farm · Delvalle Box
Vietnam
The Hiep Thanh nearshore wind farm is located between one and three kilometres off the coast of Tra...
Offshore Oil Platform · Delvalle Box
Turkmenistan
The offshore oil fields of Dzheitune (LAM) and Dzhygalybeg (Zhdanov) are located in the easternmost...
The European Marine Energy Centre (EMEC) · Delvalle Box
United Kingdom
Founded in Orkney in 2003, the European Marine Energy Centre (EMEC) is playing a key role in proving...
Cranes, Barcelona Port · Delvalle Box
Spain
The Barcelona Europe South Terminal (BEST), has 13 cranes (ship to shore), with 24 positions and a...
Automatic Bird and Bat Monitoring and Protection · Delvalle Box
Spain
Today, it is necessary a self-working system for bird and bat monitoring and/or mortality mitigation...
Opel Paint Tunnel · Delvalle Box
Spain
Automotive is a strategic sector of the Spanish and global economy and has become one of the...
Refinery and Petrochemical Plant of Grangemouth (Scotland) · Delvalle Box
United Kingdom
The Grangemouth Refinery and Petrochemical Plant is a complex located in the Firth of Forth in...
ProBiomass - Biomass Power Plant · Delvalle Box
Portugal
ProBiomass I power plant, which opera since 2017 in Portugal and is going to make an extension of...
S-80 Plus-Class Submarine · Delvalle Box
Spain
The S-80 plus class is a Spanish class of a series of submarines, of new technological design. They...
Kita-Toyotomi Substation · Delvalle Box
Japan
Upper Hokkaido in northern Japan has favorable wind conditions and abundant open land, making the...
Tree Lot 5 Wind Farm · Delvalle Box
Vietnam
Vietnam has given the green light to nearly a hundred new wind farms, signalling the nation's...
Wind Turbines (Chunnakam) · Delvalle Box
Sri Lanka
Sri Lanka's natural beauty in its tropical forests, beaches, and landscape, as well as its rich...
Biomass Power Station (Middlesbrough) · Delvalle Box
United Kingdom
The world's largest biomass power station is located at the Port of Teesside in Middlesbrough...
Agua Clara Wind Farm · Delvalle Box
Dominican Republic
The first wind farm in the north of the Dominican Republic has been commissioned, located in Agua...
Afton Wind Farm (Scotland) · Delvalle Box
United Kingdom
Afton wind farm is a new 50 MW wind farm in East Ayrshire, Scotland; a modern wind farm that will...
Ovenden Moor Wind Farm · Delvalle Box
United Kingdom
The Ovenden Moor wind farm is a recently developed wind farm site in England, is located north of...
Offshore Wind Energy (Saint-Brieuc) · Delvalle Box
France
The nation with the most nuclear power plants in Europe, France, is building its first commercial...
Tel-Aviv Light Rail · Delvalle Box
Israel
The red line will connect two cities in the Tel Aviv metropolitan area, Petah Tikva and Bat Yarn;...
Gamesa (Primoral Wind Farm) · Delvalle Box
Spain
The Primoral wind farm located in Villamayor de Gállego in Zaragoza (Spain); came into operation...
Gamesa (Loma Gorda Wind Farm) · Delvalle Box
Spain
The Loma Gorda wind farm, composed of 7 turbines, generates 70 GWh/year, which is enough energy to...
Gamesa (Santo Domingo de la Luna Wind Farm) · Delvalle Box
Spain
The Santo Domingo de Luna wind farm, located in the Zaragoza towns of Luna, Las Pedrosas and Sierra...
Gamesa (Campoliva II Wind Farm) · Delvalle Box
Spain
The Campoliva II facility, the new wind farm which, at full capacity, produces more than 119 GWh per...
Gamesa (Campoliva I Wind Farm) · Delvalle Box
Spain
Endesa has embarked on an ambitious wind farm implementation plan in the province of Aragón...
Switchgear for Electrical Power Distribution (Iberdrola / Endesa) · Delvalle Box
Spain
The real technological challenge for Futur-Cells is to develop efficient medium voltage switchgear...
Amazon Data Centre · Delvalle Box
Spain
Amazon is well known as a global commercial operator that has revolutionised the way e-commerce...
Amazon Logistic Centre · Delvalle Box
Spain
The pandemic has generated a sense of urgency in all traditional retailers including Amazon, who...
Airport Light Rail in Frankfurt · Delvalle Box
Germany
Frankfurt airport is the largest airport in Germany and serves as a hub for international flights...
GAMESA WIND TURBINES · Delvalle Box
Spain
In Paradela (Lugo), construction began on a wind farm with a capacity of 12 megawatts (MW), with a...
Blue Marlin Combined Cycle · Delvalle Box
Brazil
A project of this nature (combined cycle) requires knowledge and experience in power generation due...
Las Cumbres, wind energy · Delvalle Box
Guatemala
Wind power is one of the most important and growing renewable sources for generating electric power....
Garbage Trucks · Delvalle Box
France
The french company specialized in the supply of solutions for the garbage treatment and collection,...
Gibraltar Airport Access Tunnel · Delvalle Box
United Kingdom
To handle passenger traffic at Gibraltar airport, a 350-metre-long tunnel was designed to cross the...
GP Circuit · Delvalle Box
Qatar
The Losail International Circuit is a 5,380-metre (3.375 mi) long racetrack located 20 km northeast...
Sumbagut Gas Engine Plant · Delvalle Box
Indonesia
Indonesia, the fourth most populous country in the world with 255 million people, is the destination...
Casa Tarradellas · Delvalle Box
Spain
Casa Tarradellas decided to invest in the expansion of a mill to supply the flour for their pizzas....
Barcelona-Cadí Tunnel · Delvalle Box
Spain
The reality of new urban areas: driverless taxis, connected bicycles and smart streets. The digital...
National Stadium · Delvalle Box
Luxembourg
Luxembourg's national stadium, which will host football and rugby matches, is now in its final...
Campofrío Burgos · Delvalle Box
Spain
The early morning of 16 November 2014 was devastating in Burgos, the Campofrío factory burnt down...
Football Grounds La Liga · Delvalle Box
Spain
Football is a highly passionate and entertaining spectacle, as well as being big business....
Touwsrivier Solar Power Plant · Delvalle Box
South Africa
The Touwsrivier CPV solar plant is a 44 MW concentrating photovoltaic power station located 13 km...
Los Arcos Wind Farm (Andalusia) · Delvalle Box
Spain
Siemens Gamesa undertook the project to build a 34.6-megawatt (MW) wind farm in Los Arcos (Malaga),...
Milagro Substation · Delvalle Box
Ecuador
The new transmission system Milagro - Babahoyo doubles the transmission capacity of the existing...
Eglinton Crosstown · Delvalle Box
Canada
The Eglinton Crosstown is a light rail transit line that will run along Eglinton Avenue between...
Montreal Metro · Delvalle Box
Canada
Montreal metro is renowned for its architecture and art. A different architect has designed each...
Serra das Penas and Paradela Wind Farms (Galicia) · Delvalle Box
Spain
The province of Lugo is an appropriate place to make a €61 million investment for the connection...
Seagreen Offshore Wind Farm (Scotland) · Delvalle Box
United Kingdom
Seagreen offshore wind farm project is being developed in two phases in the Firth of Forth...
Newark Liberty International Airport (NYC) · Delvalle Box
United States
Newark Liberty International Airport is an international airport straddling the boundary between...
Solar Power Plant · Delvalle Box
Saudi Arabia
The company Saudi Aramco that is specialized in oil & gas produces, it is now considered as one of...
Cochabamba GT Power Plant in Carrasco · Delvalle Box
Bolivia
In some cases, the simplest projects are the ones that involve more experience and more...
Wellhead Control Enclosures · Delvalle Box
Algeria
The Algerian state oil company Sonatrach announced the success of its oil-drilling project started...
Moving Walkway at Dallas Fort Worth International Airport · Delvalle Box
United States
Dallas/Fort Worth International Airport  is the primary international airport serving...
San Marcos Wind Farm · Delvalle Box
Honduras
The San Marcos Wind Farm is located 140 kilometres south of the capital of Tegucigalpa (Honduras),...
Improved Mobility at Madrid-Barajas Adolfo Suárez Airport · Delvalle Box
Spain
Madrid-Barajas Adolfo Suárez airport has been equipped with new jetways and moving walkways to...
Boarding Bridges at Hamad International Airport · Delvalle Box
Qatar
The new Doha or Hamad International Airport is a new air terminal located in the Qatari city of...
Tan Thuan Coastal Wind Farm · Delvalle Box
Vietnam
Siemens Gamesa has been awarded the 75 MW and 90 MW projects at the Tan Thuan and Thai Hoa wind...
Tsing Ma Bridge in Hong Kong · Delvalle Box
China
The Tsing Ma Bridge in Hong Kong (China) is the world' s seventh longest suspension bridge....
Transformers for the Tricastin Nuclear Power Plant. · Delvalle Box
France
Located in Saint-Paul-Trois-Châteaux in Drôme, France, the Tricastin Nuclear Power Plant is...
High-Speed Train (HS2 Project) · Delvalle Box
United Kingdom
The train has been designed to meet all the requirements of HS2 Ltd. with a world reference model;...
Liquefied Natural Gas (LNG) in the Russian Arctic · Delvalle Box
Russian Federation
The project includes the construction of three LNG trains, with a capacity of 6,6 mtpa. of LNG each,...
Locomotive and Wagon Wash Tunnel · Delvalle Box
Russian Federation
Last January saw the official start of operations of the new train and wagon washing equipment...
Atacama Large Millimeter Array · Delvalle Box
Chile
The Atacama Large Millimeter/submillimeter Array (ALMA) is the most complex astronomical observatory...
The Riyadh Metro · Delvalle Box
Saudi Arabia
The Riyadh metro is one of the largest infrastructure works ever built. This metro represents a true...
Hyperimmune Plasma in Patients with COVID-19 · Delvalle Box
United States
Delvalle has supplied stainless steel junction boxes for pharmaceutical industry in the development...
High-Speed Moving Walkway at Toronto Airport · Delvalle Box
Canada
The new high-speed moving walkway has been installed at Toronto Airport, in Canada. It is called...
Trans Adriatic Pipeline · Delvalle Box
Albania
The Trans Adriatic pipeline is one of the most ambitious engineering projects of the last decade,...
Chinalco Mining in Peru · Delvalle Box
Peru
Toromocho project (mine truck shop facilities) is located at 4.500m above sea level, in the mining...
Follo Line Rail Tunnels, Norway’s Biggest Rail Project · Delvalle Box
Norway
They will be the longest railway tunnels in Scandinavia, part of the Follo Line project, the biggest...
Hamad International Airport (Doha) · Delvalle Box
Qatar
The new Hamad International Airport (HIA) was designed to cater for a projected ongoing increase in...
Enclosures for Charging Station for Electric Vehicles · Delvalle Box
Spain
Stainless steel Enclosures Designed to be installed in Charging Station for Electric Vehicles, both...
Kincardine Floating Marine Wind Farm (Scotland) · Delvalle Box
United Kingdom
Delvalle was chosen for the Kicanrdine Offshore floating Wind Farm in Scotland as the supplier of...
Ryanair Airports · Delvalle Box
Spain
Delvalle has been chosen by the company Ryanair for the development of its outdoor cabinets used in...
Official Supplier of CERN ( Large Hadron Collider) · Delvalle Box
Switzerland
Delvalle habe been approved for the supplier to CERN of Stainless steel Industrial Enclosures....
New Metro Line in Guadalajara (Mexico) · Delvalle Box
Mexico
The construction of line 3 of Guadalajara subway (Mexico) has began. This is one of the most...
New Port of Doha · Delvalle Box
Qatar
Delvalle are suppliers to the firms making this new port on Doha, capital of Qatar....
Motorway C-16 · Delvalle Box
Spain
At Delvalle we are suppliers of outdoor electrical cabinets for protecting the C-16 data...
AVE Monforte del Cid–Murcia · Delvalle Box
Spain
We are the supplier of the electrical cabinets for the high speed rail line between Monforte and...
Danone Yogurt Factory in Ohio · Delvalle Box
United States
We supply stainless steel enclosures hygienic design series this factory, one of the highest north...
Wikinger, The largest Deep sea offshore windfarm · Delvalle Box
United Kingdom
At Delvalle we have customized a solution to guarantee the sealing and maximum resistance in such a...
Nuclear Power Stations · Delvalle Box
France
Delvalle is very conscious to any possible risks that may have nuclear power....
Enlargement of the Port of Barcelona · Delvalle Box
Spain
A special and different port. Commercial, citizen, energy and logistical use....
Oran Tamway · Delvalle Box
Algeria
We supplied cabinets meeting the demanding French specifications....
Ferrovial Tunnel Under the Marmara Sea · Delvalle Box
Turkey
Delvalle and Siemens designed EMC electrical cabinets for the placement of electronics and signaling...
AVE Madrid-Valencia · Delvalle Box
Spain
Electrical cabinets for transmission of a multitude of data to the main data centre....
The Panama Channel Expansion Project · Delvalle Box
Panama
Manufacture and installation of watertight and hurricanes resistant IP67 nema 4x enclosures....
Desalination Plant · Delvalle Box
Kuwait
Special cabinets to support the special characteristics of this harsh desert area....
{{thanks}}Rating 5 out of 5. Total votes: 3.
