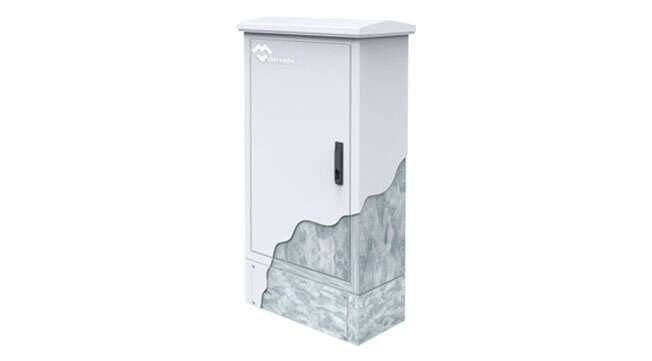

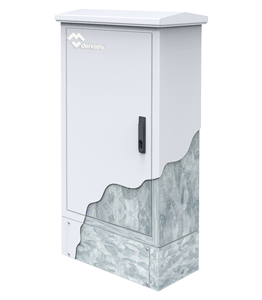

Galvanized Outdoor Cabinet Tropico IP66

TROPICO SERIES

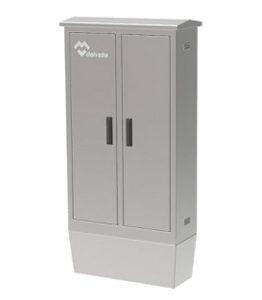

The Tropico Series enclosure for outdoor and street lighting made of galvanized and painted steel. Robust, developed and designed for outdoor, use with an embedded door, triple action above all rotation anti-vandalism handle and waterproof seal approved CE, UL.

This product has the following certificates

Description

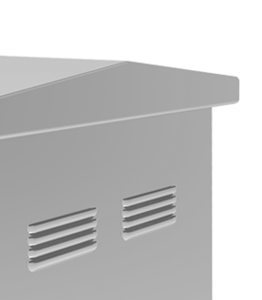

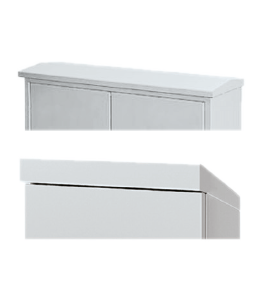

Achieves a sealing from IP54 to IP65, and the maximum possible resistance IK10. Attached selfventilating roof and optional plinth together with embedded door make it vandal proof.

Download all documents and certificates

Do you need extra info?
In DELVALLE, WE make IT EASY for you

Discover the advantages

Excellent mechanical properties and high resistance too.

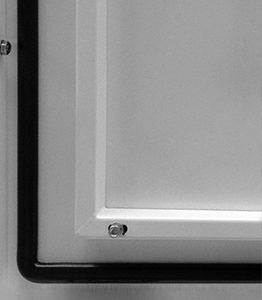

Water repellent injected seal.

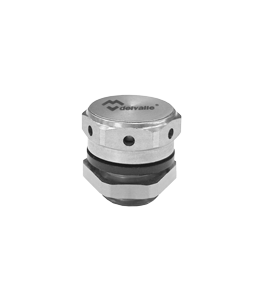

Automatic condensation evacuation.

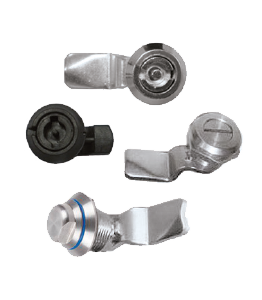

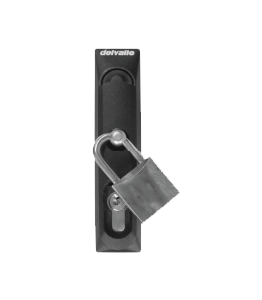

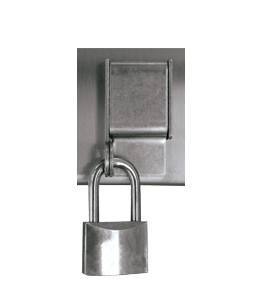

The enclosure includes anti-vandalism locks and handles, adapted for electric and gas company locking systems.
Maintenance free for life, over 30 years.
Delvalle makes to order any pre-cut units for your needs, including holes, channels, both in the door and in the enclosure itself.

Regulations

• IP66 Norm EN 62208 and EN 60529.
• Maximum IK10 hit resistance Norm IEC 62262.
• IEC 60068-2-30 y IEC 60068-2-11.
• Built to CE standard 2014/35/UE.
• Resistant to impact with sharp objects according to EN 60439-5.
• Maximum voltage 1000 V.
• Temperature resistant: -40°C +100°C (short time +160°C).
• Option silicone gasket: from -60°C to +180°C (short time up to +350°C).

Applications

Our outdoor Tropico Series enclosures, have a design, finishing and sealing especially for telecommunications, street lighting, railway lines to hold and protect all electrical and electronic equipment, in the rail sector, urban city cabinets and telecommunications (ICT), TV, RDSI, RT, TB, TLCA.

Custom Made Solutions
We offer multiple solutions

Galvanized Outdoor Cabinet Tropico IP66 · Delvalle Box

Do you need solutions?

Delvalle Box has the solution

2025 product catalogues

Download Zone

• Varying design and painting available on request.

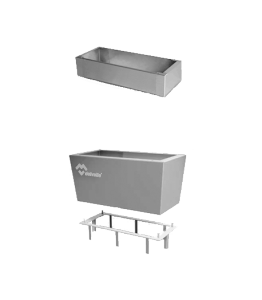

• Plinths at base for enclosures of any size. They allow enclosures to stand over the floor, with extra room for cable entry. Available as 100mm (standard) and 200mm high.

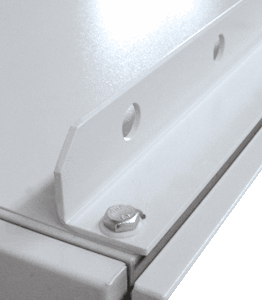

• Fasteners and anchors for ground fixing.
• Graffiti-proof protective paint.

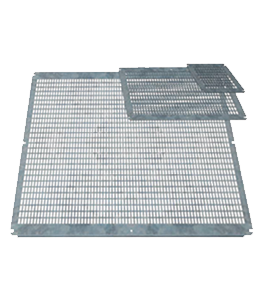

• Insulating mounting plate (bakelite) or in stainless steel.
• EMC version according to 2014/30/UE of electromagnetic compatibility.

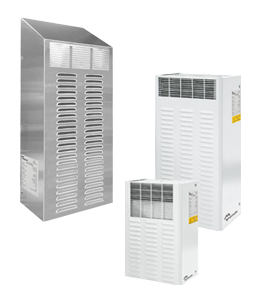

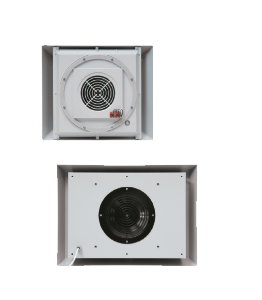

• Ventilation KIT (Fan, resistance heating and dual thermostat).

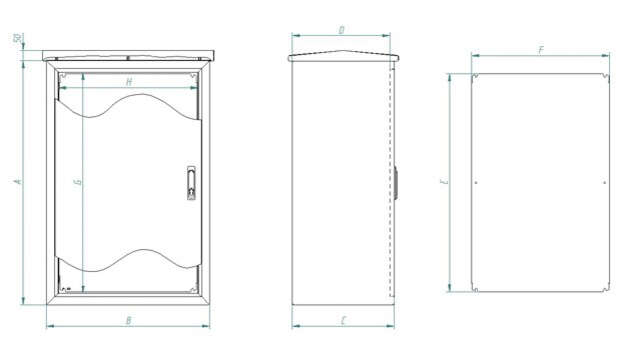

Sketches

References

Show References

Reference	Description	High	Width	Background
MVHD806040	ARMARIO INTEMPERIE TROPICO GALVA	800	600	400	MVHD806040
MVHD801232	ARMARIO INTEMPERIE TROPICO GALVA	800	1200	320	MVHD801232
MVHD801432	ARMARIO INTEMPERIE TROPICO GALVA	800	1400	320	MVHD801432
MVHD106032	ARMARIO INTEMPERIE TROPICO GALVA	1000	600	320	MVHD106032
MVHD106040	ARMARIO INTEMPERIE TROPICO GALVA	1000	600	400	MVHD106040
MVHD106050	ARMARIO INTEMPERIE TROPICO GALVA	1000	600	500	MVHD106050
MVHD108032	ARMARIO INTEMPERIE TROPICO GALVA	1000	800	320	MVHD108032
MVHD108040	ARMARIO INTEMPERIE TROPICO GALVA	1000	800	400	MVHD108040
MVHD108050	ARMARIO INTEMPERIE TROPICO GALVA	1000	800	500	MVHD108050
MVHD126032	ARMARIO INTEMPERIE TROPICO GALVA	1200	600	320	MVHD126032
MVHD126040	ARMARIO INTEMPERIE TROPICO GALVA	1200	600	400	MVHD126040
MVHD126050	ARMARIO INTEMPERIE TROPICO GALVA	1200	600	500	MVHD126050
MVHD128032	ARMARIO INTEMPERIE TROPICO GALVA	1200	800	320	MVHD128032
MVHD128040	ARMARIO INTEMPERIE TROPICO GALVA	1200	800	400	MVHD128040
MVHD128050	ARMARIO INTEMPERIE TROPICO GALVA	1200	800	500	MVHD128050
MVHD121032	ARMARIO INTEMPERIE TROPICO GALVA	1200	1000	320	MVHD121032
MVHD121040	ARMARIO INTEMPERIE TROPICO GALVA	1200	1000	400	MVHD121040
MVHD121050	ARMARIO INTEMPERIE TROPICO GALVA	1200	1000	500	MVHD121050
MVHD121232	ARMARIO INTEMPERIE TROPICO GALVA	1200	1200	320	MVHD121232
MVHD121432	ARMARIO INTEMPERIE TROPICO GALVA	1200	1400	320	MVHD121432
MVHD121440	ARMARIO INTEMPERIE TROPICO GALVA	1200	1400	400	MVHD121440
MVHD121450	ARMARIO INTEMPERIE TROPICO GALVA	1200	1400	500	MVHD121450
MVHD121632	ARMARIO INTEMPERIE TROPICO GALVA	1200	1600	320	MVHD121632
MVHD121640	ARMARIO INTEMPERIE TROPICO GALVA	1200	1600	400	MVHD121640
MVHD121650	ARMARIO INTEMPERIE TROPICO GALVA	1200	1600	500	MVHD121650
MVHD122232	ARMARIO INTEMPERIE TROPICO GALVA	1200	2200	320	MVHD122232
MVHD122240	ARMARIO INTEMPERIE TROPICO GALVA	1200	2200	400	MVHD122240
MVHD122250	ARMARIO INTEMPERIE TROPICO GALVA	1200	2200	500	MVHD122250
MVHD141032	ARMARIO INTEMPERIE TROPICO GALVA	1400	1000	320	MVHD141032
MVHD141050	ARMARIO INTEMPERIE TROPICO GALVA	1400	1000	500	MVHD141050
MVHD141240	ARMARIO INTEMPERIE TROPICO GALVA	1400	1200	400	MVHD141240
MVHD141432	ARMARIO INTEMPERIE TROPICO GALVA	1400	1400	320	MVHD141432
MVHD141440	ARMARIO INTEMPERIE TROPICO GALVA	1400	1400	400	MVHD141440
MVHD141450	ARMARIO INTEMPERIE TROPICO GALVA	1400	1400	500	MVHD141450
MVHD161232	ARMARIO INTEMPERIE TROPICO GALVA	1600	1200	320	MVHD161232
MVHD161240	ARMARIO INTEMPERIE TROPICO GALVA	1600	1200	400	MVHD161240
MVHD161250	ARMARIO INTEMPERIE TROPICO GALVA	1600	1200	500	MVHD161250
MVHD161450	ARMARIO INTEMPERIE TROPICO GALVA	1600	1400	500	MVHD161450
MVHD161832	ARMARIO INTEMPERIE TROPICO GALVA	1600	1800	320	MVHD161832
MVHD161840	ARMARIO INTEMPERIE TROPICO GALVA	1600	1800	400	MVHD161840
MVHD161850	ARMARIO INTEMPERIE TROPICO GALVA	1600	1800	500	MVHD161850
MVHD162050	ARMARIO INTEMPERIE TROPICO GALVA	1600	2000	500	MVHD162050
MVHD182050	ARMARIO INTEMPERIE TROPICO GALVA	1800	2000	500	MVHD182050
MVHD182450	ARMARIO INTEMPERIE TROPICO GALVA	1800	2400	500	MVHD182450
MVHD202450	ARMARIO INTEMPERIE TROPICO GALVA	2000	2400	500	MVHD202450
MVHD222050	ARMARIO INTEMPERIE TROPICO GALVA	2200	2000	500	MVHD222050
MVHD222450	ARMARIO INTEMPERIE TROPICO GALVA	2200	2400	500	MVHD222450
MVHD101232	ARMARIO INTEMPERIE TROPICO GALVA	1000	1200	320	MVHD101232
MVHD101240	ARMARIO INTEMPERIE TROPICO GALVA	1000	1200	400	MVHD101240
MVHD101250	ARMARIO INTEMPERIE TROPICO GALVA	1000	1200	500	MVHD101250
MVHD101432	ARMARIO INTEMPERIE TROPICO GALVA	1000	1400	320	MVHD101432
MVHD101440	ARMARIO INTEMPERIE TROPICO GALVA	1000	1400	400	MVHD101440
MVHD101450	ARMARIO INTEMPERIE TROPICO GALVA	1000	1400	500	MVHD101450
